Overview
- NTT Electronics's codec products ensures premium quality and performance with the internally developed advanced LSI.
Features
- H.265 AVC Video Encoding transmission: UHD 0.8Mbps to 100Mbps
- MPEG-4 AVC Video Encoding transmission: Up to HD 50Mbps
- Web API feature for preset conversion without controlling equipment.
- IP stream transmission with both LAN-GbE and LAN-FE ports - NMS port and service port can be operated separately and
simultaneously.

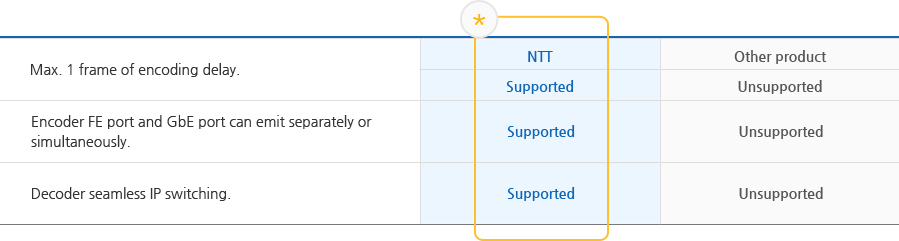

Ultra Low Delay

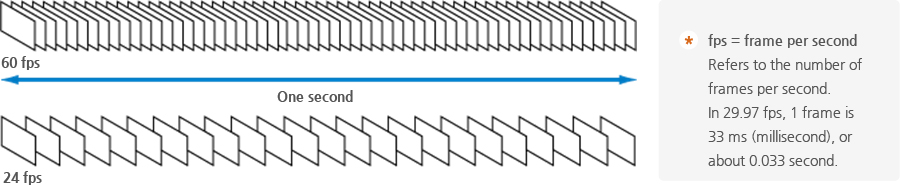

- Max. 1 frame of encoding delay.
- Ultra low delay mode latency: Max. 1 frame for ASI transmission.

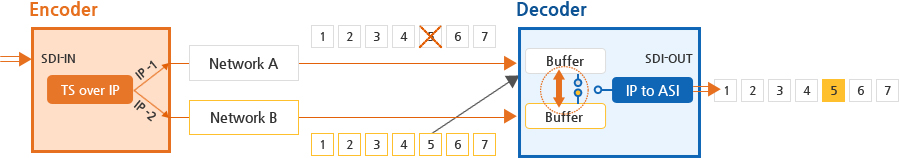

Seamless Changeover
- Only IP Seamless Changeover among IP codec.
- Seamless IP switching between two main/backup IP sources of input to decoder.

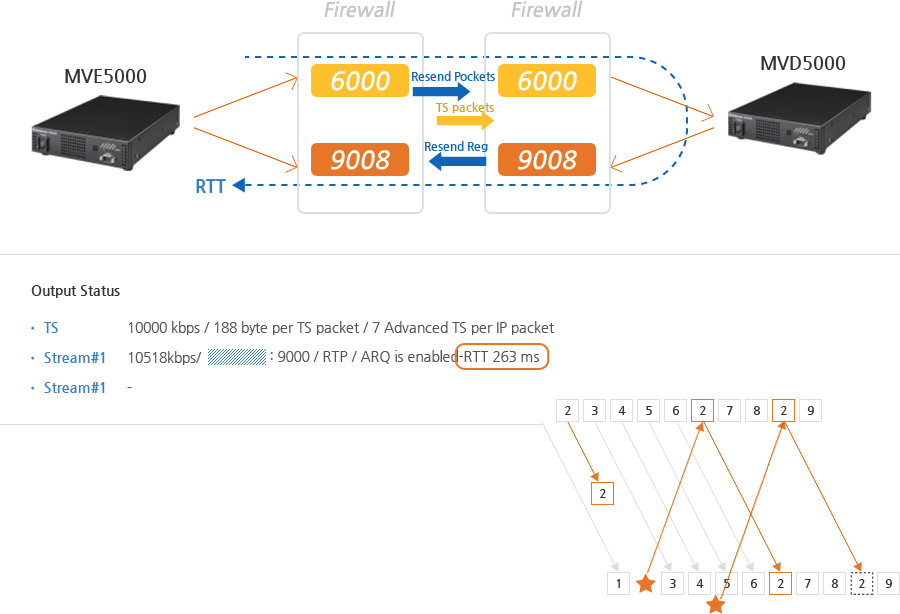

Exceptional error correction

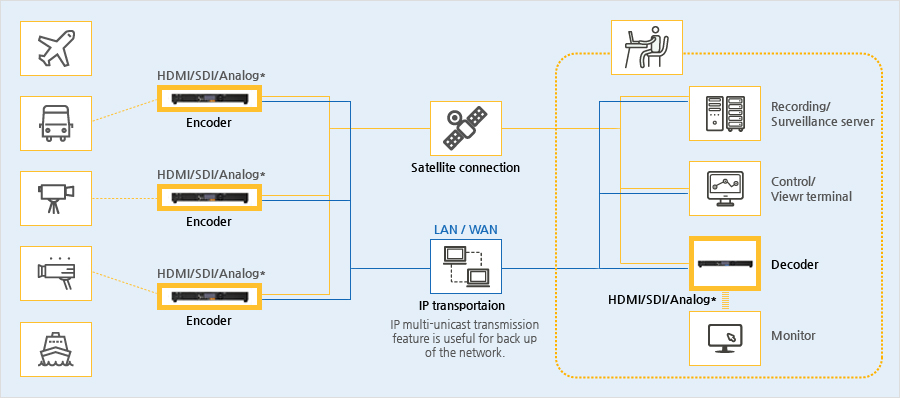

Diagram
Application
Video codec optimized for quality, low-latency, stable emission.
Korea Reference

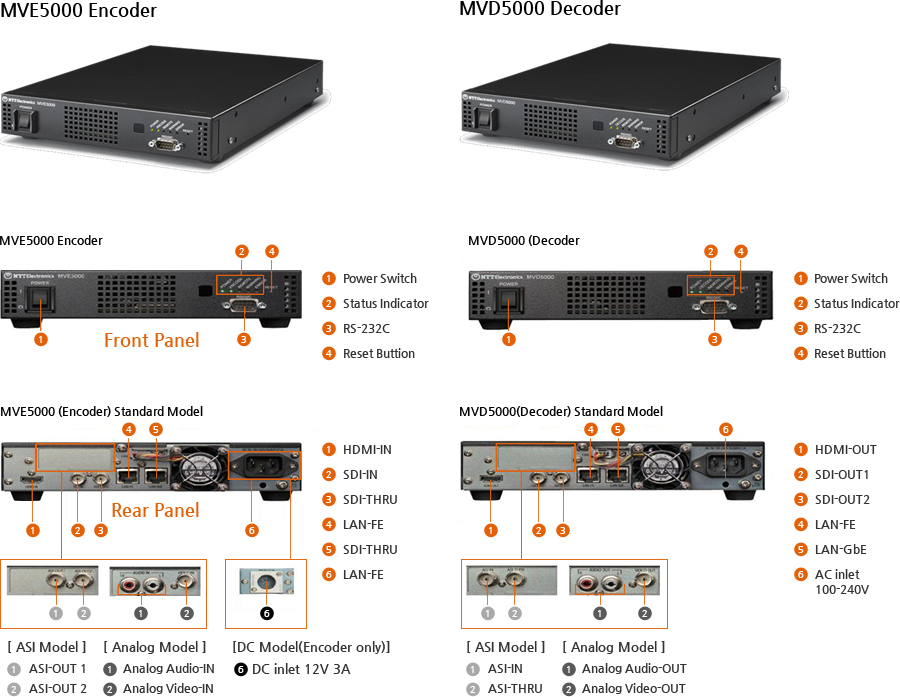

Encoder equipment (MVE5000)
| 1 | Power Switch |
|---|---|
| 2 | Status Indicator |
| 3 | Reset Button |
| 4 | RS-232C |
| 5 | HDMI-IN |
| 6 | SDI-IN |
| 7 | SDI-THRU | 8 | ASI-Out/Analog-IN Option | 9 | SDI-THRU | 10 | LAN-GbE | 11 | AC inlet 100-240V | 12 | FAN |

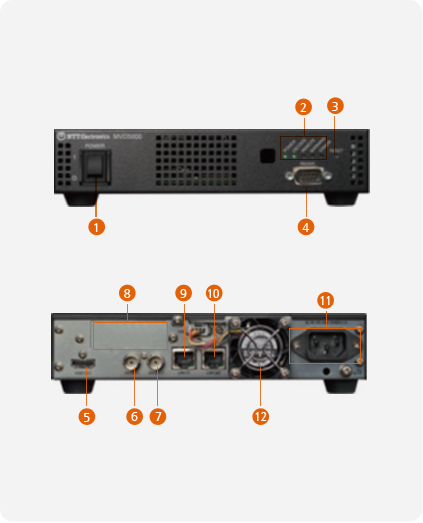

Decoder equipment (MVD5000)
| 1 | Power Switch |
|---|---|
| 2 | Status Indicator |
| 3 | Reset Button |
| 4 | RS-232C |
| 5 | HDMI-OUT |
| 6 | SDI-OUT1 |
| 7 | SDI-OUT2 | 8 | ASI-Out/Analog-IN Option | 9 | LAN-FE | 10 | LAN-GbE | 11 | AC inlet 100-240V | 12 | FAN |
