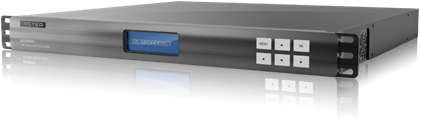

UHD Encoder (DS BroadCast)

BGE9000

Encoder

About Product

  • Single-link 12G SDI : SMPTE ST 2092-10
  • Quad 3G-SDI : SMPTE 425 Level A
  • 3840x2160p @ 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz,
    25Hz
  • 1920x1080p @ 60Hz, 59.94Hz, 50Hz, 30Hz, 29.97Hz,
    25Hz
  • Single-link 12G SDI : SMPTE ST 2092-10
  • 1280x720p @ 60Hz, 59.94Hz, 50Hz
  • 4:2:2 8/10-bit uncompressed input sources
  • H.265 | HEVC Main10, Level 5.1
  • PQ (SMPTE ST. 2084)
  • HLG (ITU-R BT.2100)
  • AAC LC
  • MPEG-H Audio
  • Dolby AC-4
  • World's first UHD TV Encoder equipment supporting ATSC
    (Advanced Television System Committee) 3.0 for UHD
    (ultra-high definition) quality of terrestial broadcasting.
  • Supports HEVC Main10, 4K UHD@59.94p.
  • Supports High Dynamic Range:
    HDR10 (SMPTE ST 2084), HLG(ITU-R BT.2100)
  • Supports Wide Color Gamut requirement.
  • Hybrid Encoder using exclusive hardware chips for
    software and video compression.
  • ROUTE/MMTP multiplexing.
  • Supports 4 x 3G-SDI or 12G-SDI inputs.
  • Output through ASI or Ethernet.
  • Ensures 50,000 hours of MTBF (Mean Time Between Failure).
  • Dual power supply.

BGD41000

Decoder

About Product

  • 3840x2160 p @ 59.94Hz, 50Hz, 29.97Hz, 25Hz
  • 1920x1080 p @ 59.94Hz, 50Hz, 29.97Hz, 25Hz
  • 1920x1080 i @ 59.94Hz, 50Hz
  • 1280x720 p @ 59.94Hz, 50Hz
  • 4:4:4 8bit/10bit uncompressed sources
  • H.264 Main/High Profile, Level 4.2
  • H.265(HEVC) Main / Main 10 Profile, Level 5.1
  • MPEG-1 Layer 1/2/3
  • MPEG-2 AAC, MPEG-4 HE-AAC
  • Dolby AC-3, E-AC-3, AC-4
  • MPEG-H 3D Audio
  • Max. 3840x2160p60 video stream decoding.
  • Supports HEVC(H.265), MPEG-4(H.264),
    and MPEG-2 decoding.
  • Front panel LCD-AV real-time monitoring
  • Input signals: RF signals (ATSC 3.0/ATSC 1.0), IP,
    DVB-ASI
  • Output signals: 12G-SDI, 4 x 3G-SDI, HDMI 2.0a, HD-SDI,
    DVB-ASI
  • Dual power supply.
