Products Sumavision

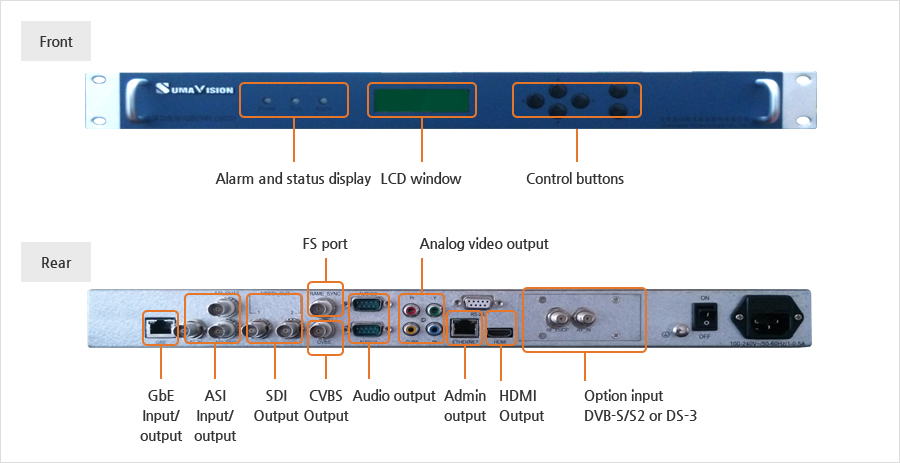

D8020 - Multi format decoder

D8020

D8020 –Processes input signals.

Input and output signals (converting).

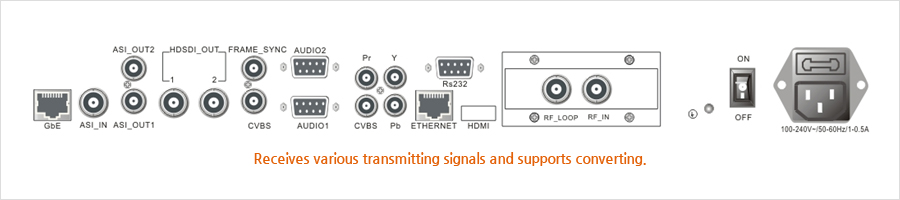

Input signals.
  • 1 x GbE
  • 1 × ASI
  • 1 x DVB-S/S2 또는 DS-3 (optional)
Output signal
  • 1 x GbE
  • 2 × ASI
Output signal (decoding).
  • 2 x SD/HD SDI
  • 1 x CVBS and Y/Pb/Pr(via RCA)
  • 1 x HDMI
  • 2 x Balanced analog audio and balanced digital audio
Video & audio decoding.
  • Basically supports H.264 and MPEG-2 decoding.
  • MPEG Layer2, Dolby Digital
Frame Sync Support
